Revision poster: access, endpoint and version lifecycle.

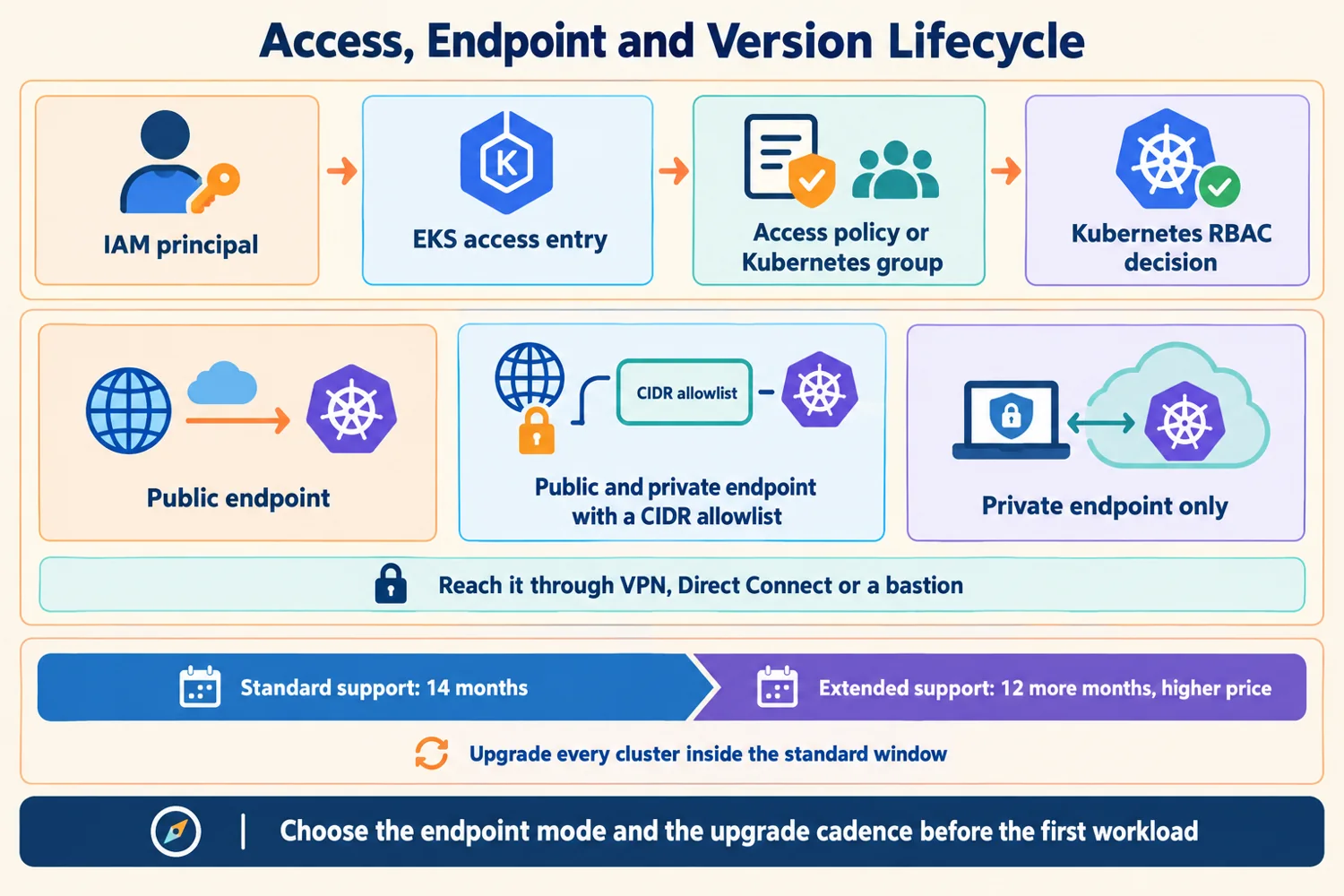

Infographic: the IAM to Kubernetes access chain, the three API endpoint modes and the standard and extended support timeline
Click the poster to enlarge it

Top: how an IAM identity becomes Kubernetes permissions. Middle: the three endpoint modes. Bottom: the version support timeline.

  1. 1An IAM principal gets an EKS access entry, which carries access policies or Kubernetes groups.
  2. 2RBAC makes the final authorization decision inside the cluster.
  3. 3Public only is exposed, public plus private with an allowlist is the common production choice, private only is the tightest.
  4. 4Standard support lasts about 14 months, extended support 12 more at a higher price.
  5. 5Decide the endpoint mode and upgrade cadence before the first workload.

Self-check: cover the poster and answer

  • Why are access entries safer than the aws-auth ConfigMap?
  • Which endpoint mode needs VPC endpoints for ECR and STS?

Choose the endpoint mode and the upgrade cadence before the first workload.
